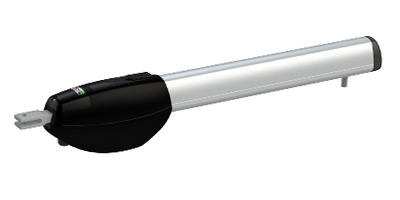

BE20/200
Intensive use Swing Gate A
ctuator

  • Gate Leaf capacity: 7.2 Ft (2.2 mt)

  • Power: 24VDC

  • Power rating: 200W

  • 200+ cycles per day

  • Max thrust: 100 - 2200N

  • Frequency of use: Intensive use

  • Operating temperature: -20 C° +55 C°

  • Protection level: IP 43

  • Stroke: 400 mm

  • Manoeuvre speed: 1,66 cm/s

  • Opening time at 90°: 19-30 s

  • Dimension: L867 x W115 x 155 H

  • Limit switch: Mechanical stopper

  • Reductor Type: Irreversible


> Brochure

> User manual

> Control panel manual
