Products > Door & Gate Operators > ROGER

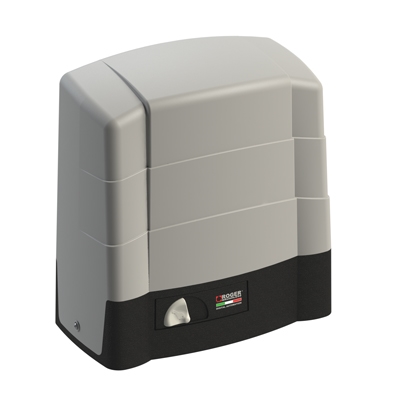

BG30/2203/115 BRUSSLESS

Sliding Gate Operator

  • Main Power: 115 VAC

  • Power rating: 470 W

  • Max thrust: 1700 N

  • Frequency of use: 100%

  • Motor thermal protection: 150°C

  • Operating temperature: -20+55°C

  • Manoeuvre speed: 9.5 m/min

  • Max gate weight: 2200 Kg

  • Maximum dimension product in mm: L346x W180x H362

  • Encoder: Optical

  • Limit switch: Mechanical

  • Onboard control unit: B70/1DCHP

  • Reductor Type: Irreversible


> Brochure

> Installation manual

> Control board manual
