Products > Door & Gate Operators > ROGER

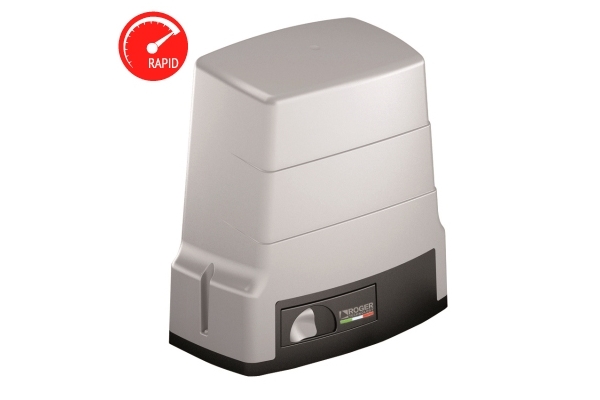

BH30 BRUSSLESS

Intensive use Sliding Gate Operator

  • Power Line 120 VAC

  • Motor power: 24 VDC

  • Power rating: 200W

  • Max thrust: 50 - 1000N

  • Frequency of use: Super intensive use

  • Operating temperature: -20+55°C

  • Protection level: IP43

  • Manoeuvre speed: 9.5m/min

  • Max gate weight: 600-1000 Kg

  • Maximum dimension product in mm: L315x W165x H329

  • Batteries recovery: Optional

  • Operating cycles per day (opening/closing - 24 hours no stop): 1300

  • Limit switch: Mechanical

  • Onboard control unit: B70/1DC

  • Reductor Type: Irreversible


> Brochure

> Installation manual

> Control board manual
