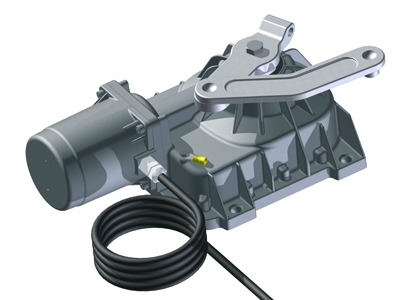

BR21/351
Underground motor for swing gates

  • Gate leaf capacity: 14.5 Ft (4.5 mt)
  • 36 Vdc electric motor
  • Power rating: 200 W
  • 300+ cycles per day
  • Max thrust: 300 N
  • Frequency of use: Intensive use
  • Operating temperature: -20+55°C
  • Protection level: IP 67
  • Opening time at 90° 19-29 s
  • Dimension in mm: H405xW221xL414
  • Limit switch: Mechanical stoppers
  • Maximun opening: 105°(optional 125° - 360°)
  • Power supply cable length: 2m
  • Bearing on main shaft: Standard
  • Reductor Type: Irreversible
  • Optional battery backup
