Products > Door & Gate Operators > ROGER

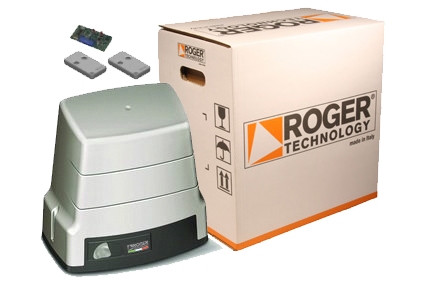

H30/6415
Residential Sliding Gate Operator Kit

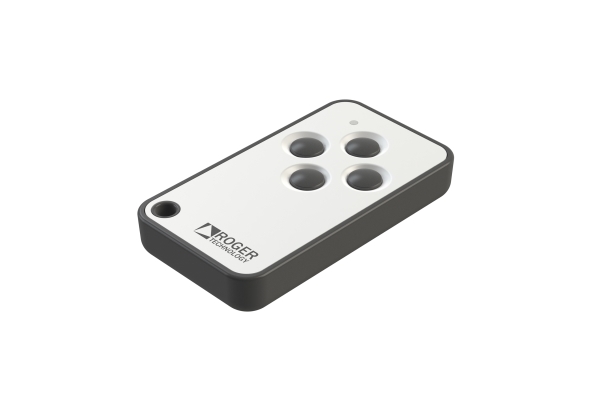

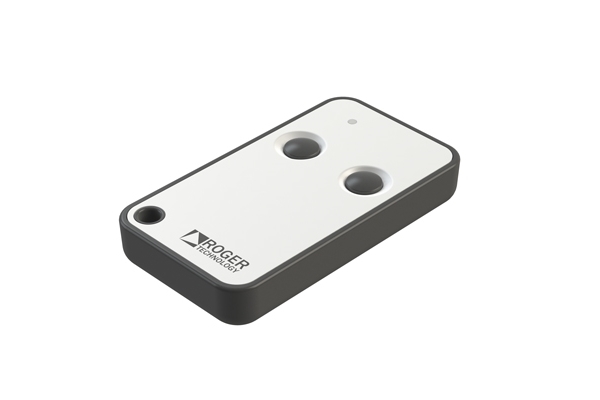

Includes radio receiver & 2 remotes

  • Power: 120 VAC

  • Power rating: 240W

  • Max thrust: 300N

  • Frequency of use: 50%

  • Motor thermal protection: 150°C

  • Operating temperature: -20 C° +55 C°

  • Protection level: IP43

  • Manoeuvre speed: 9.5 m/min

  • Max gate weight: 600Kg

  • Maximum dimension product in mm: L315 x W165 x H329

  • Encoder: Optical

  • Limit switch: Mechanical

  • Onboard control unit: R70/1AC

  • Reductor Type: Irreversible


> Brochure
