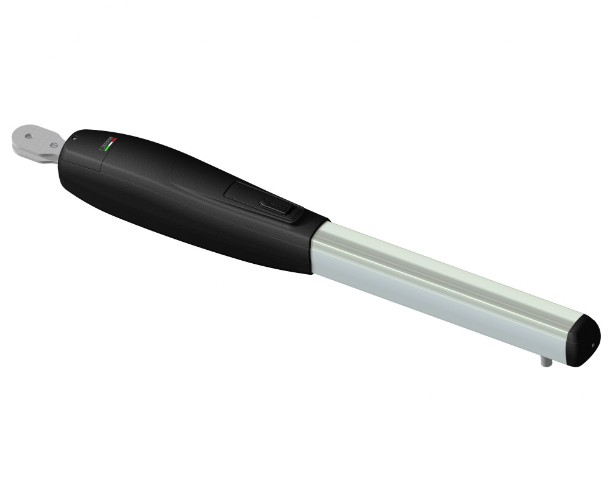

SMARTY7

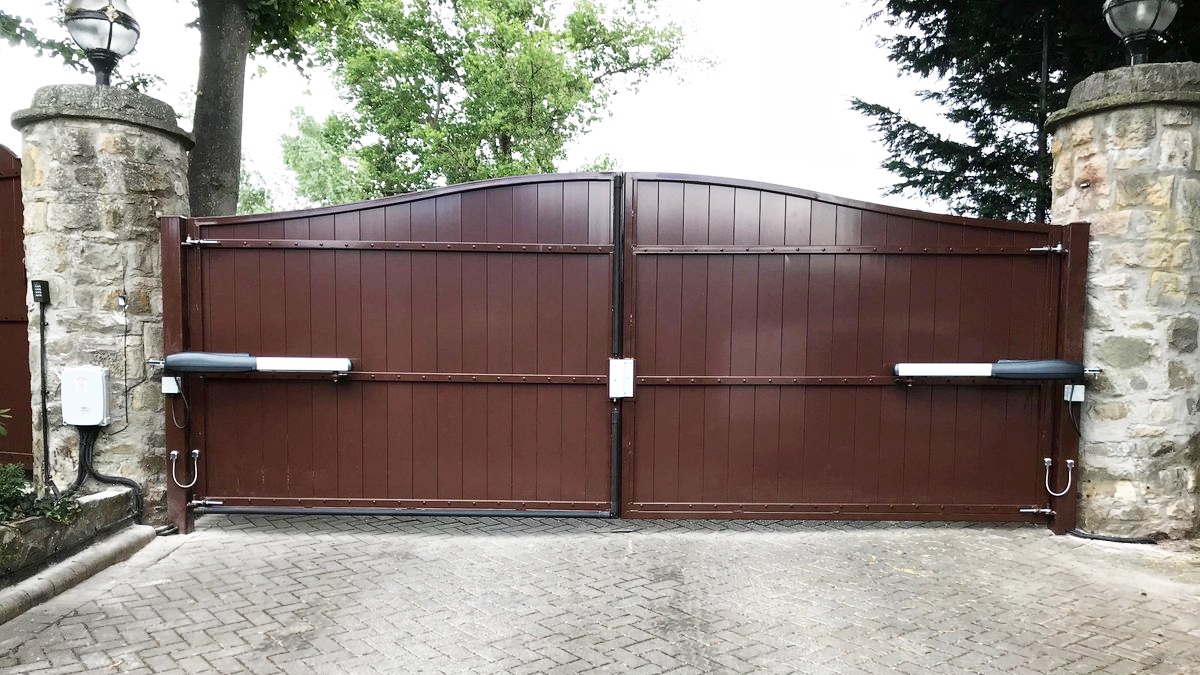

Intensive use Swing Gate Actuator

  • Gate capacity: 22 Ft (7 mt)
  • Power: 36V
  • Power rating: 200W
  • 300+ Cycles per day
  • Max thrust: 600 - 5000N
  • Frequency of use: Intensive use
  • Operating temperature: -20 C° +55 C°
  • Protection level: IP 44
  • Stroke: max 520 mm
  • Manoeuvre speed: 1,66 - 1 cm/s
  • Opening time at 90°: 35-50 s
  • Dimension in mm: L1312 x W166 x 137H
  • Limit switch: Mechanical stopper
  • Reductor Type: Irreversible
