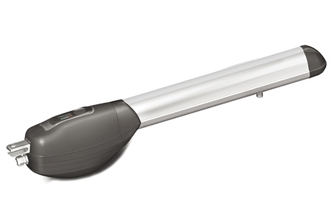

BR20/500
Intensive use Swing Gate A
ctuator

  • Number items per pallet:     36
  • Power:     24V
  • Power rating:     240W
  • Max thrust:     100 - 2800N
  • Frequency of use:     Intensive use
  • Operating temperature:     -20 C° +55 C°
  • Protection level:     IP 43
  • Stroke:     520 mm
  • Manoeuvre speed:     1,66 cm/s
  • Opening time at 90°:     27-42 s
  • Maximum dimension product in mm:     L858,5 x W120 x 165 H
  • Operating cycles per day (opening/closing - 24 hours no stop):     1000 cycles
  • Limit switch:     Mechanical stopper in opening and closing
  • Reductor Type:     Irreversible


> Brochure
