Accessories

Special Pages > Products
KEYPADS & KEY SWITCHES

AXK4
Wireless Digital Keypad.

  • Outdoor rated
  • 4 channel (Codes)
  • Compatible with DITEC BIX receivers and all control panels with an incorporated receiver.


AXK5
Key switch.
Key operated vandal-resistant selector switch, to be mounted on the outside of the automation system.



H85/TDR/E
Wireless Keypad

    • Outdoor rated
    • 4 channel (Codes)
    • Compatible with ROGER Radio receivers.
    • Dimension mm: 75x77x42




    R85/60EAS
    External selector made in aluminium with standard cylinder.

    • Protection level: IP54
    • Material: Aluminum
    • Installation Type: External
    • Dimension mm: 75x77x56


    AK-11
    Outdoor Digital Keypad

    • Rugged, cast aluminum enclosure for indoor or outdoor mounting on a wall or pedestal
    • Up to 480 programmable input codes of one to six digits
    • Two LED indicators show system status


    FC42
    Outdoor Digital Keypad.

    • Antivandal surface mounted keypad
    • Stainless steel front plate.
    • Two relays for lock opening.
    • 12 programmable codes for each relay.
    • Programmable from 1 to 99 secs.

    > Brochure

    GNC-1
    Steel Pedestal with base

    • 42 Inches High
    • Curb mount
    • Rugged
    • Weather Resistant
    • Powder Coated
    • Rolled Steel Construction
    • Universal bolt pattern on base
    • Faceplate fits most manufactures' products

    > Brochure

    LOOPS
    MATRIX
    Single loop detector for vehicle access control and safety.

    Automatic sensitivity boost.
    Digital and micro processed.
    Available in multiple power supplies; 110, 220 and 12-24 volts.


    MATRIX
    Dual loop detector for vehicle access control and safety.

    • Separate sensitivity setting for each loop.
    • Automatic sensitivity boost.
    • Digital and micro processed.
    • Available in multiple power supplies; 110, 220 and 12-24 volts.

    CP-4
    Free-Exit detector / Exit Probe

    Cartell GateMate Self-Contained Free Exit System
    • Dimensions: 4.5" X 3.5"
    • Enclosure Rating: IP67
    • Relay Time: 2-3 Seconds
    • Power Required: 8–24V AC Or 8–30V DC


    FM139
    Driveway Vehicle Sensor

    Detect an approaching vehicle within a 12 foot (3.7m) radius. The wired sensors are available in 50 ft. (15.3m), 100 ft. (30.5m), and 150 ft. (45.8m) direct burial wire lengths.


    FIRE ACCESS
    AFB120
    Fire Access Box with Micro Switch and Knox Key Switch Option


    SOS
    Siren Operated Sensor.

    The Siren Operated Sensor (SOS) responds to the sound of a siren to open residential, commercial, airport, government, and military gates in an emergency. Currently used throughout the Americas and Europe and mandated in many communities nationwide, the SOS VIII is the most reliable, cost-effective device for opening your gates, roll-up doors, parking arms, and barriers in an emergency.


    PHOTOCELLS
    LIN2
    Photocell 30m (99ft.)

    • Power supply: 24 V AC/DC
    • Range: 30 m max
    • Temperature: -20° C / +55° C


    M90/F2ES
    Pair of external photocells synchronized.

    • Power supply: 12/24 V AC/DC
    • Range: 15 m max
    • Temperature: -20° C / +60° C


    DOC B
    Reflective Photo Beam Sensor

    • Detection type: Retro-reflection
    • Sensing range: Maximum 32 Feet
    • Supply voltage: DC/DC 12~24 V
    • Response time: 10ms max.
    • Emitting element: IR LED
    • Ambient temperature: - 4 F- 131 F

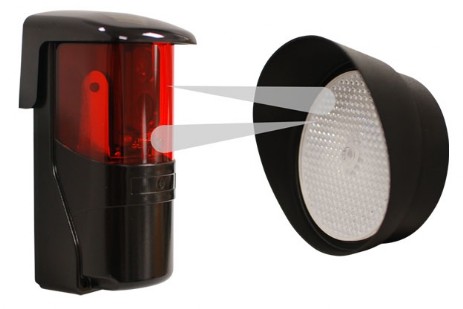

    DOCB-P
    Polirized Reflective Photocell

    • Input volt: 12-250 VAC/DC (non polarity)
    • Beam spreading angle: 1.5° (half angle)
    • Contact capacity: 0.5A/120VAC (1A/30VDC)
    • Sensing range: 32 feet


    LMRRU
    LM Monitored Retro Reflective Photo Eye


    LMRRUL
    Monitored Retro-Reflective Photo Eyes


    LIGHT SIGNALING
    FLM
    Strobe Light for Ditec Operators.
    24-230V AC/DC


    FIFTHY/24
    LED flashing light series FIFTHY 24V with integrated antenna.


    TLINE

    LED industrial traffic lights engineered for signalization in different scenarios like building technology, mechanical engineering and access control systems.


    TRAFFIC L
    LED Traffic Lights Signal.

    The Two Lights Traffic Signal is made of rugged, lightweight -polycarbonate material. It's designed for years of reliable, continuous outdoor service. The Traffic Signal is suitable for commercials & industrial applications such as parking areas, loading docks, tollbooths, guard shacks and more. Major features include: High brightness, high reliability, low power consumption, big perspective, multi sealed, and waterproof.


    BATTERIES
    PS1212
    Universal Battery

    • Voltage: 12 Volt
    • Current: 1.2 Amp hour
    • Length 3.82 x Width 1.69 x Height 2.32
    • Weight:1.6 Lb.

    PS1245
    Universal Battery

    • Voltage: 12 Volt
    • Current: 4.5 Amp hour
    • Length 3.54 x Width 2.76 x Height 4.21
    • Weight: 4.1 Lb.

    PS1220
    Universal Battery

    • Voltage: 12 Volt
    • Current: 2.2 Amp hour
    • Length 7.01 x Width 1.38 x Height 2.64
    • Weight: 2.5 Lb.


    PS1270
    Universal Battery

    • Voltage: 12 Volt
    • Current: 7 Amp hour
    • Length 5.95 x Width 2.56 x Height 3.94
    • Weight: 6.5 Lb.
