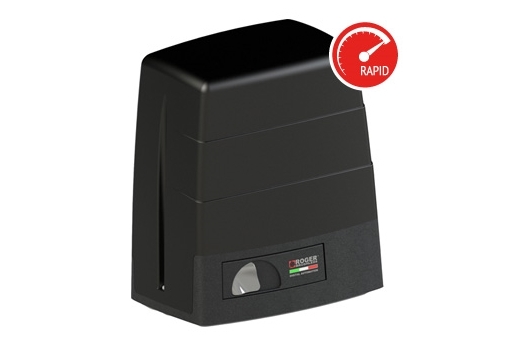

BM30

High Speed Sliding Gate Operator


  • Power Line 120 VAC

  • Motor power: 24 VDC

  • Power rating: 125W

  • Max thrust: 350N

  • Frequency of use: Super intensive use

  • Operating temperature: -20+55°C

  • Protection level: IP43

  • Manoeuvre speed: 26 m/min

  • Max gate weight: 400 Kg

  • Maximum dimension product in mm: L250x W165x H290

  • Batteries recovery: Optional

  • Operating cycles per day: 500

  • Limit switch: Mechanical

  • Onboard control unit: B70/1DC

  • Reductor Type: Irreversible


> Brochure

> Installation manual

> Control board manual

H85/TDR/E
Wireless Keypad

R85/60EAS
External selector made in aluminium with standard cylinder

M90/F2ES
Pair of external photocells synchronized.

CRN2
Nylon Rack For Gates up to 1000 Lb.
