TRIPOD TURNSTILES
Trilock 60
The Medium Capacity Tripod Turnstile
The Trilock 60 is an attractive tripod turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety of colors allows you to match this turnstile perfectly to your lobby or team or company brand.
> Brochure
Trilock 75
The Robust Tripod Turnstile
The Trilock 75 is the tripod turnstile you need when design and aesthetics are important but you also require a truly robust secured entry solution that is able to withstand large user volumes and abusive conditions.
> Brochure

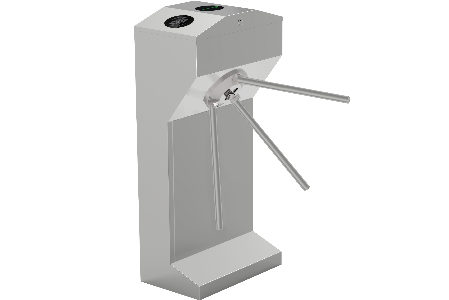

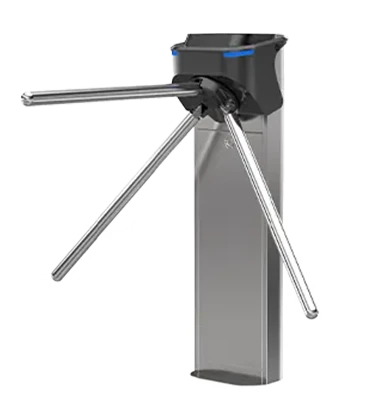

Vertical Tripod Turnstile
TRIL100
Size: 420x330x990mm
Unlock Time: 0.2s
Entrance Speed: ≤35 people/min
Entrance Width: ≤ 550mm
Input Voltage: 110--220VAC, 50HZ
Working Voltage: 24VDC
Material: 304 Stainless steel
> Brochure

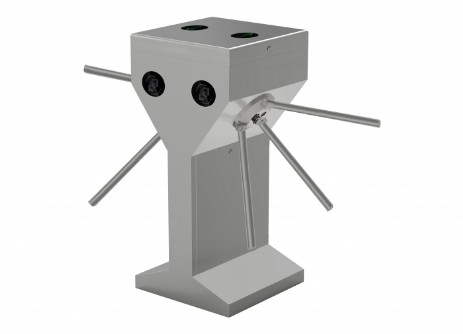

Double Core Vertical Tripod Turnstile
TRIL100-2
TRIL100-2
Size: 450x450x980mm
Unlock Time: 0.2s
Entrance Speed: ≤35 people/min
Entrance Width: ≤550mm
Input Voltage: 110--220VAC,50HZ
Working Voltage: 24VDC
Material: 304 Stainless steel
> Brochure

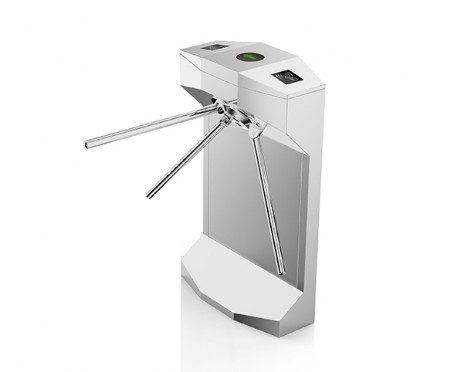

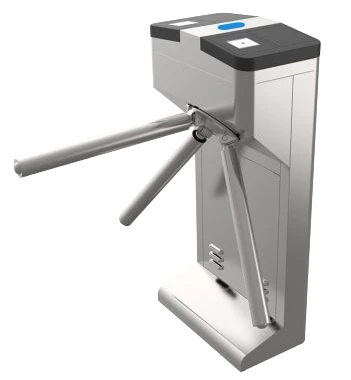

Vertical Tripod Turnstile
TRIL500
Size: 600 x 280 x 980mm
Unlock Time: 0.2s
Entrance Speed: ≤35 people/min
Entrance Width: ≤550mm
Input Voltage: 110--220VAC, 50HZ
Working Voltage: 24VDC
Material: 304 Stainless steel
> Brochure

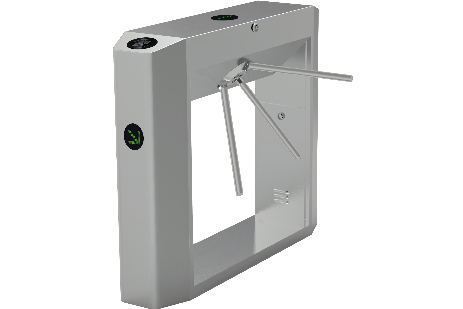

Bridge Tripod Turnstile
TRIL210
TRIL210
Size: 1200x280x980mm
Unlock Time: 0.2s
Entrance Speed: ≤35 people/min
Entrance Width: ≤550mm
Input Voltage: 110--220VAC,50HZ
Working Voltage: 24VDC
Material: 304 Stainless steel
> Brochure
SWING TURNSTILES

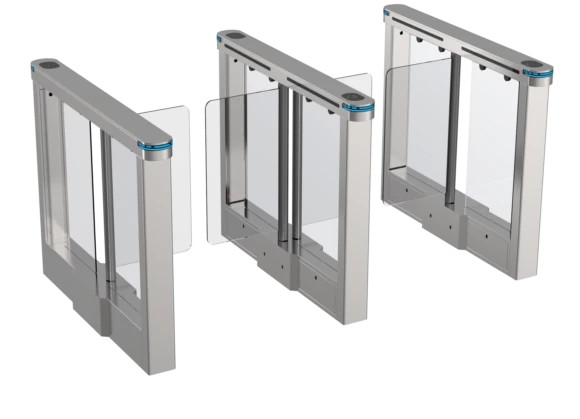

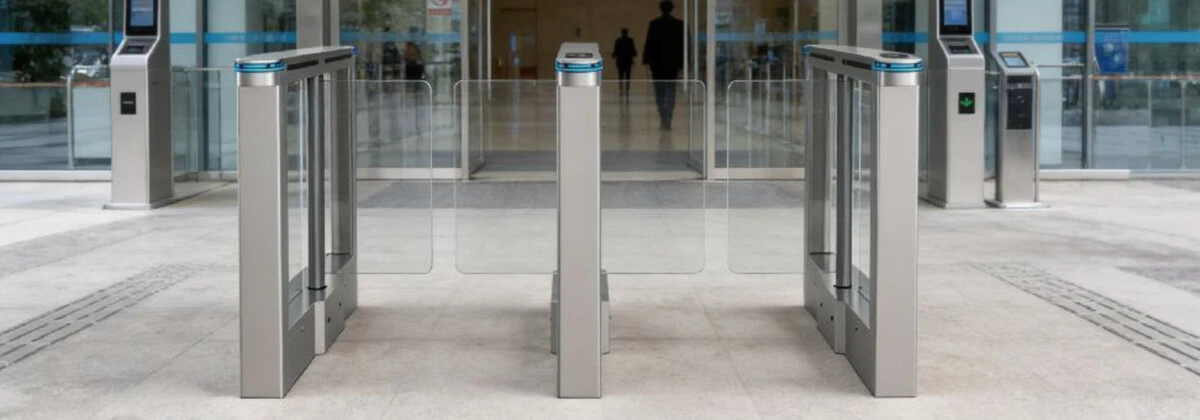

Winglock Swing
Sleekest gate on the market today. Constructed from stainless steel and a single glass panel, the lane is elegant and unobtrusive in nature and design. The access gate is designed to manage bi-directional traffic with ease, using smart, intuitive technology to guide each visitor through to their destination without delay or inconvenience.
> Brochure
Trilock Side Gate
Sturdy Gateway for Special Needs
The Trilock Side Gate compliments Boon Edam’s tripod turnstile and optical turnstile models to allow access for those with special needs or the passage of dollies or carts. Choose from a variety of finishes to match adjacent turnstiles or surrounding décor.
> Brochure

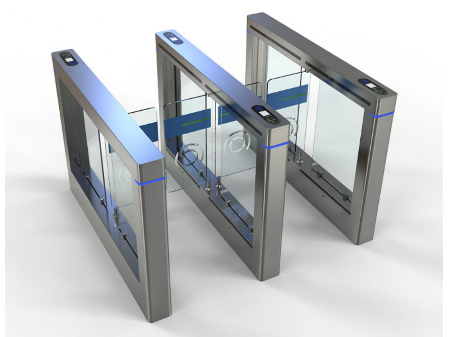

SWINGL700
Swing Turnstile
Specifications:
- Sstainless steel, the upper cover resistant to fingerprint. Acrylic Door
- Size: 1200*142*1020mm
- Entrance width: 900mm
- Power: 110--230VAC, 50HZ±4％
- Voltage: DC24V
- Drive Mode: Digital
- Working Temperature: -25℃～+75℃；
- Entrance Speed: 40-55 person/min
- Service Life: 600 times
- Enviroment Temperature: 5%--90%
> Brochure

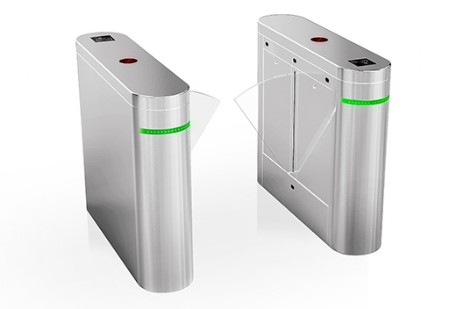

Round Wing Turnstile
SWINGG500
Size: 1200*300*980mm
Unlock Time: 0.2s
Entrance Speed: ≤35 people/min
Entrance Width: ≤550mm
Input Voltage: 110--220VAC, 50HZ
Working Voltage: 24VDC
IR Alarm And IR Anti-pinch
Valid Card Open And Reverse Access Will Alarm
Material: 304 Stainless steel
> Brochure
FULL HEIGHT TURNSTILES

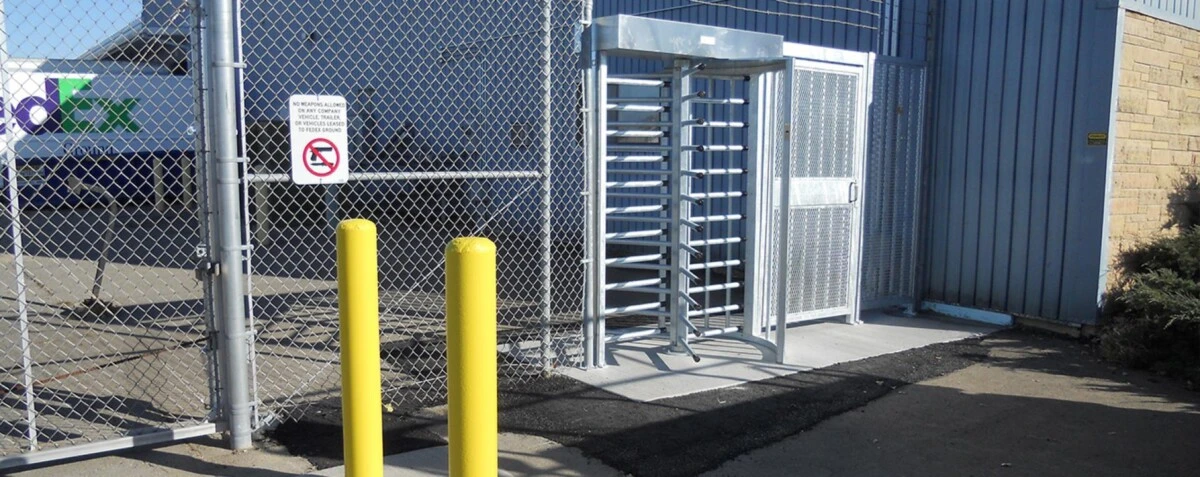

Turnlock 100
A Rugged Full Height Turnstile for Perimeter Security
The Turnlock 100 is an all metal full height turnstile that is extremely suitable for outside use. Its rugged construction ensures trouble free and dependable operation. The choice between three or four rotors allows you to adapt to the specific requirements concerning capacity, user comfort and security. Choose from galvanized steel, powder coated steel, stainless steel and powder coated steel with aluminum rotor arms. A tandem model is available to double capacity in less space than two separate turnstiles.
> Brochure

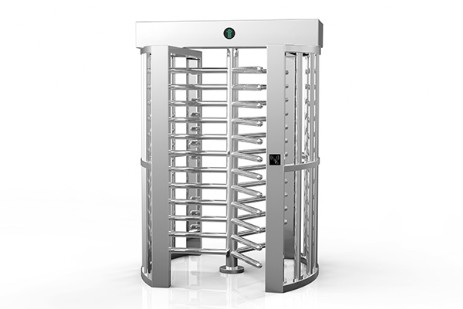

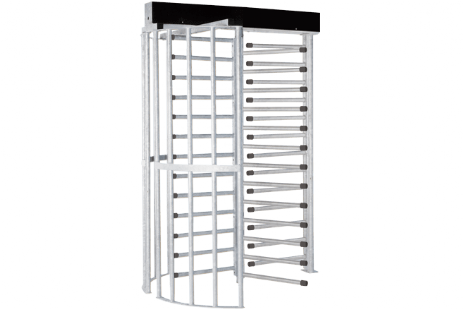

HS400 SERIES SINGLE
High-Security Series units are engineered to meet the most-demanding security and control requirements. They can function as stand-alone units or as part of an integrated system, be fitted for any application with leading edge technology and features, and integrate with most card reader systems and biometrics.
High-Security Series units are engineered to meet the most-demanding security and control requirements. They can function as stand-alone units or as part of an integrated system, be fitted for any application with leading edge technology and features, and integrate with most card reader systems and biometrics.
> Brochure

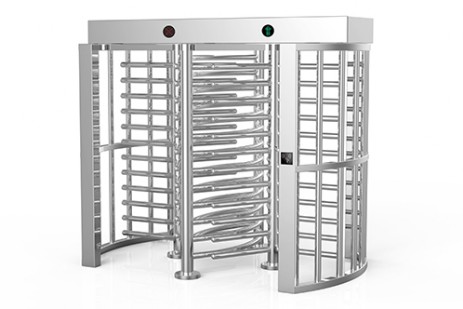

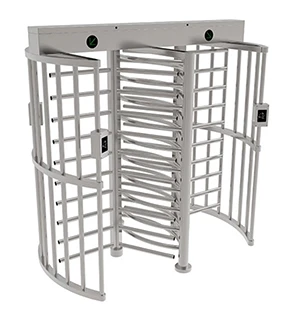

HS400 SERIES TANDEM
High-Security Series tandem units are engineered to meet the most-demanding security and control requirements, and are ideal for situations where you need many people to move through a portal in a short time, but have space restrictions. They can function as stand-alone units or as part of an integrated system, be fitted for any application with leading edge technology and features, and integrate with most card reader systems and biometrics.
