Proximity Readers

Main Menu > PEDESTRIAN ACCESS

CARD READERS

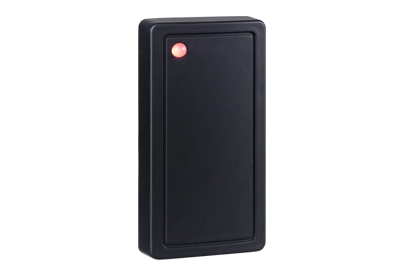

ASR-2608
Mini-reader

Frequency:125KHz
Support EM card
Voltage：DC12~15V
Size：80×43×13mm

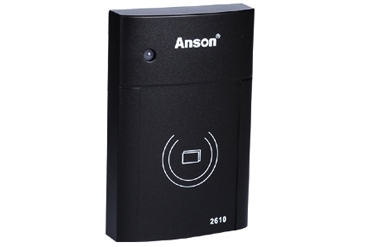

ASR-2610
Proximity Reader

Card type: EM
Frequency: 125KHz
Voltage: DC12~15V
Size: 100*64*18mm

> User Manual

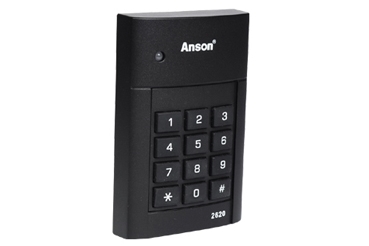

ASR-2620

Frequency: 125KHz

Voltage: DC12~15V

Size: 100*64*18mm

Card type: EM

Proximity Reader

> User Manual

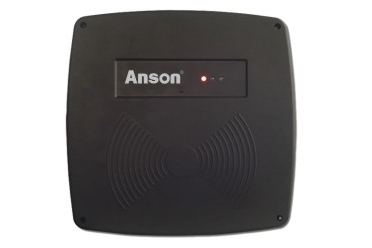

ASR-2650
Medium Range proximity reader.

Frequency: 125KHz
Reading distance: 50~100CM (2.5 feet.)
Voltage: DC12V
Size: 260*260*35mm

> User Manual

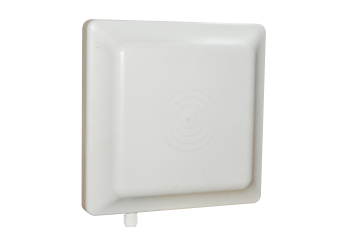

ASR-2656

Long Range Proximity Reader

Sensing Distance: 5m (15 feet)
Card Type: 915MHz long-range card
Working Frequency: 902~928MHz
Output Format: RS232/485, wiegand 26/34
Support Card: ASC-HF01/ASC-HF02
Working Voltage: DC 12V±5%

> Brochure

> User Manual

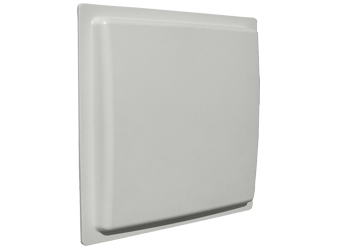

ASR-2657

Long Range Proximity Reader

Sensing Distance: 15m (45 feet)
Card Type: 915MHz long-range card
Working Frequency: 902~928MHz
Output Format: RS232/485, wiegand 26/34
Support Card: ASC-HF01/ASC-HF02
Working Voltage: DC 12V±5%

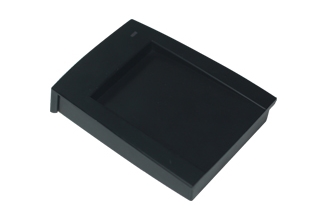

ASR-FC01

USB Card Distributor

Work Frequency: 125KHz / 13.56MHz
Sensing Distance: 2～4cm
Output Format: USB Only read
Voltage: DC 5V 40mA
Size: L106×W82×H25mm

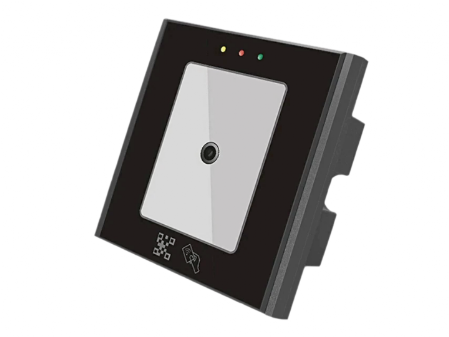

QR-READ

QR code & mifare card reader with wiegand 26 output.

> Brochure

FINGERPRINT

ASF-DF18

Fingerprint stand alone to count attendance.

Excel reports can be exported via USB. Large capacity, rapid recognition speed, industrial grade design durable. It is the best choice for office attendance and access control management.

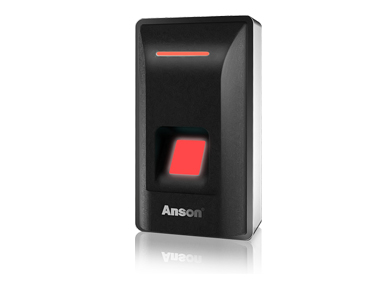

ASF-DF20

Fingerprint / Card Reader

Communication Mode TCP/IP
Working Temperature and Humidity -10°C-50°C / 10%-90%
Software Safesmart Easy Mode/Expert Mode
Working Voltage DC12V/1A
UserRecord 3000 / 70000
Size L122xW77xH45mm

> Brochure

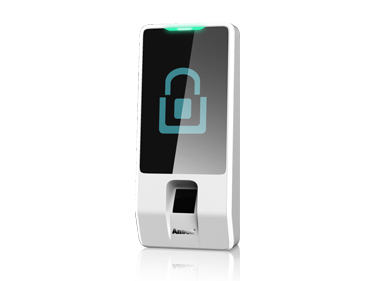

ASF-DF30

Fingerprint / Card Reader

Communication Mode TCP/IP
Working Temperature and Humidity -10°C-50°C / 10%-90%
Software Safesmart Easy Mode/Expert Mode
Working Voltage DC12V/1A
UserRecord 3000 / 70000
Size L179xW76xH36mm

> Brochure

ASF-DF40

Fingerprint / Card / Password Access Control

Communication Mode TCP/IP
Working Temperature and Humidity -10°C-50°C / 10%-90%
Software Safesmart Easy Mode/Expert Mode
Working Voltage DC12V/1A
UserRecord 3000 / 70000
Size L179xW76xH36mm

> Brochure

STAND ALONE

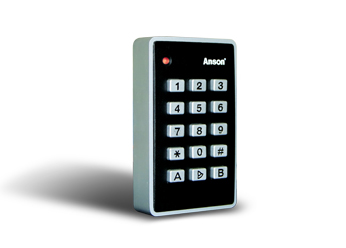

ASI-DE10

Off-Line Card Reader

Capacity: 800 Cards
Card type: EM
Voltage: 9-15 VDC
Size: 122×77×39mm

ASI-DE20

Integrated Access Control

Communication Mode TCP/IP
Recognition Mode Card / Password
Software Easy Mode/Expert Mode
Working Voltage DC12V/500mA
UserRecord 20000 / 70000
Size L122xW77xH39mm

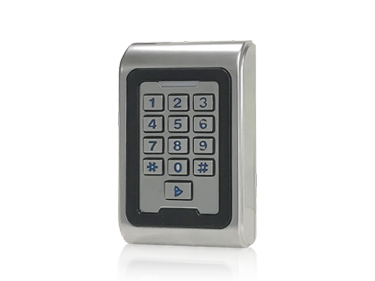

ASI-DE20T

Integrated Access Control

Communication Mode TCP/IP
Recognition Mode Card / Keypad
Software Safesmart Easy Mode/Expert Mode
Working Voltage DC12V/500mA
UserRecord 20000 / 70000
Size L108xW77xH26mm

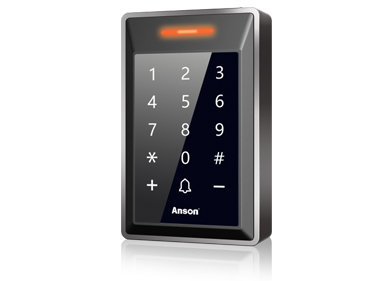

ASI-DE30

Integrated Access Control

Communication Mode TCP/IP
Recognition Mode Card / Keypad
Software Safesmart Easy Mode/Expert Mode
Working Voltage DC12V/500mA
UserRecord 20000 / 70000
Size L122xW77xH36mm

CONTROL PANELS

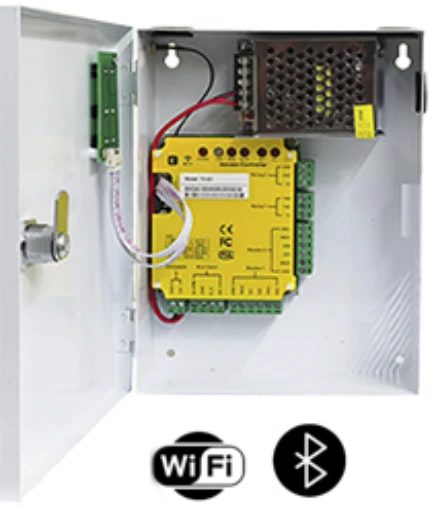

TC-C1

Access Control Panel WIFI - BLUETOOTH

500 users.
Communication mode: WiFi y Bluetooth
Technology: MCU of 8 bits
Recognition speed < 0.5 Sec.
Connection available with keypad, contact magnetic and alarm output.
Compatible with:

> User Manual

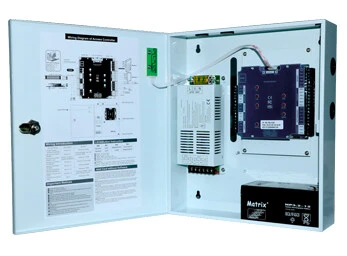

ASC-DE12
Access Controller for 1 to 2 doors.

1 Door two-way or 2 doors one-way
Standard Wiegand26
Card Storage: 20,000
Events Record: 70,000
Working Voltage: DC 10~15V
Communication Interface: TCP/IP
Power cabinet included

> Brochure
> User Manual

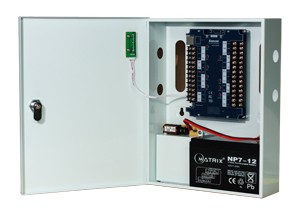

ASC-DE24
Access Controller for 2 to 4 doors.

2 Doors two-way or 4 doors one-way
Standard Wiegand26
Card Storage: 20,000
Events Record: 70,000
Working Voltage: DC 10~15V
Communication Interface: TCP/IP
Power cabinet included

> Brochure

> User Manual

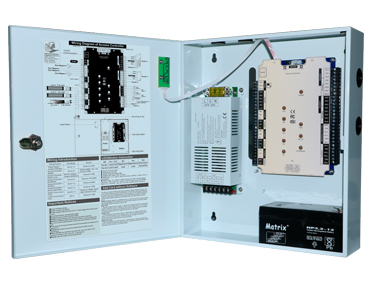

ASC-DL24

Elevator Controller

Communication Mode: TCP/IP/Extension RS485
Recognition Mode: Wiegand26/34
Software: Safesmart Easy Mode/Expert Mode
Working Voltage DC12V/400mA
UserRecord: 20000 / 70000
Size: L330xW288xH72mm

CARD & TAGS

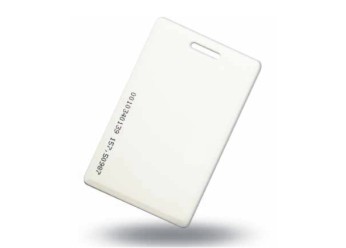

ASC-EM01
Clam Shell Card

Sensing Distance: 5-15cm
Working Frequency: 125KHz
Card Size: 86×54×0.8mm
Readers: ASR-2610, ASR-2620

ASC-EM02
ISO Card Printable

Sensing Distance: 5-15cm
Working Frequency: 125KHz
Card Size: 86×54×0.8mm
Readers: ASR-2610, ASR-2620

ASC-EM03
Keyfob

Sensing Distance: 2-15cm
Working Frequency: 125KHz
Readers: ASR-2610, ASR-2620

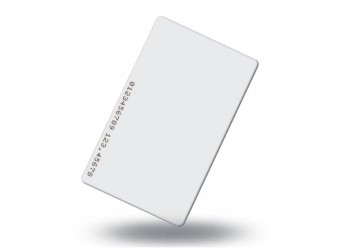

ASC-EM04
Mid Range proximity card

Sensing Distance: 40-100cm
Working Frequency: 125KHz
Card Size: 86×54×0.8mm
Readers: ASR-2650

ASC-HF01
Long Range Passive Card

Compatible with ASR-2656 & ASR-2657
Packaging Material:PVC
Size:86×54×1.8mm

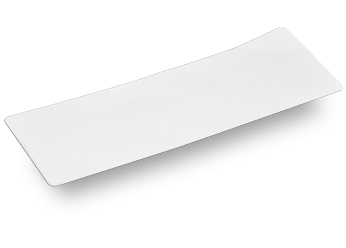

ASC-HF02
Long Range Label Card

Compatible with ASR-2656 & ASR-2657
Packaging Material: PVC
Size:110×45×0.37mm

PUSH BUTTONS

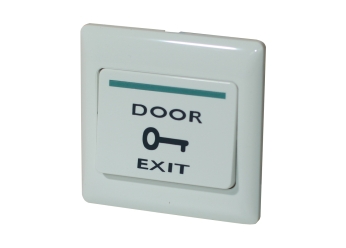

ASF-EN10

Exit Button Plastic.

Size: 86x86x20mm
Max. current: 10A@48VDC
Weight: 0.13kg

ASF-EN20
Exit Button (Aluminum)

Size: 86x50x20mm
Max. current: 3A@36VDC
Weight: 0.16kg

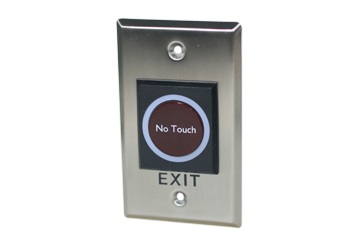

ASF-EN40A

IR Sensing Eixt Button

Max. U/I 3A@36VDC
Contact Output NO/NC/COM
Material Stainless Steel
Size L113×W68×H20mm

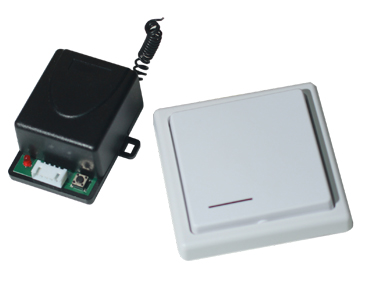

ASF-EN90B

Remote control linear distance 20m

Frequency: 433.92MHz

Material: Plastic

Size: L62×W43.5×H30mm
Remote Exit Button

POWER SUPPLY

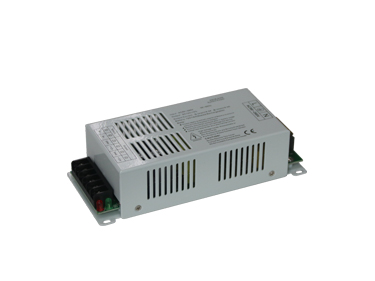

ASCB-630S
Power Supply

Input Voltage: AC220V±15%
Output Voltage: DC12V±15%
Output Current: 5A
Battery: 7AH/12DC
Size: 140×80×50mm

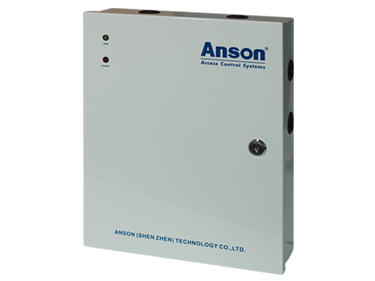

ASCB-6602

Power Supply Box

Support Hardware ASC-DE12/24
Support Battery Installation With battery installation space
Material Steel Plate
Size L273×W175×H72mm
